NashFab

NashFab Roof Rack - Fits 2020-2024 Subaru Outback & Wilderness

NashFab Roof Rack - Fits 2020-2024 Subaru Outback & Wilderness

SKU:NASH-RROUTBACK-20-24

Regular price $1,199.00 USD
Regular price Sale price $1,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Wind Fairing

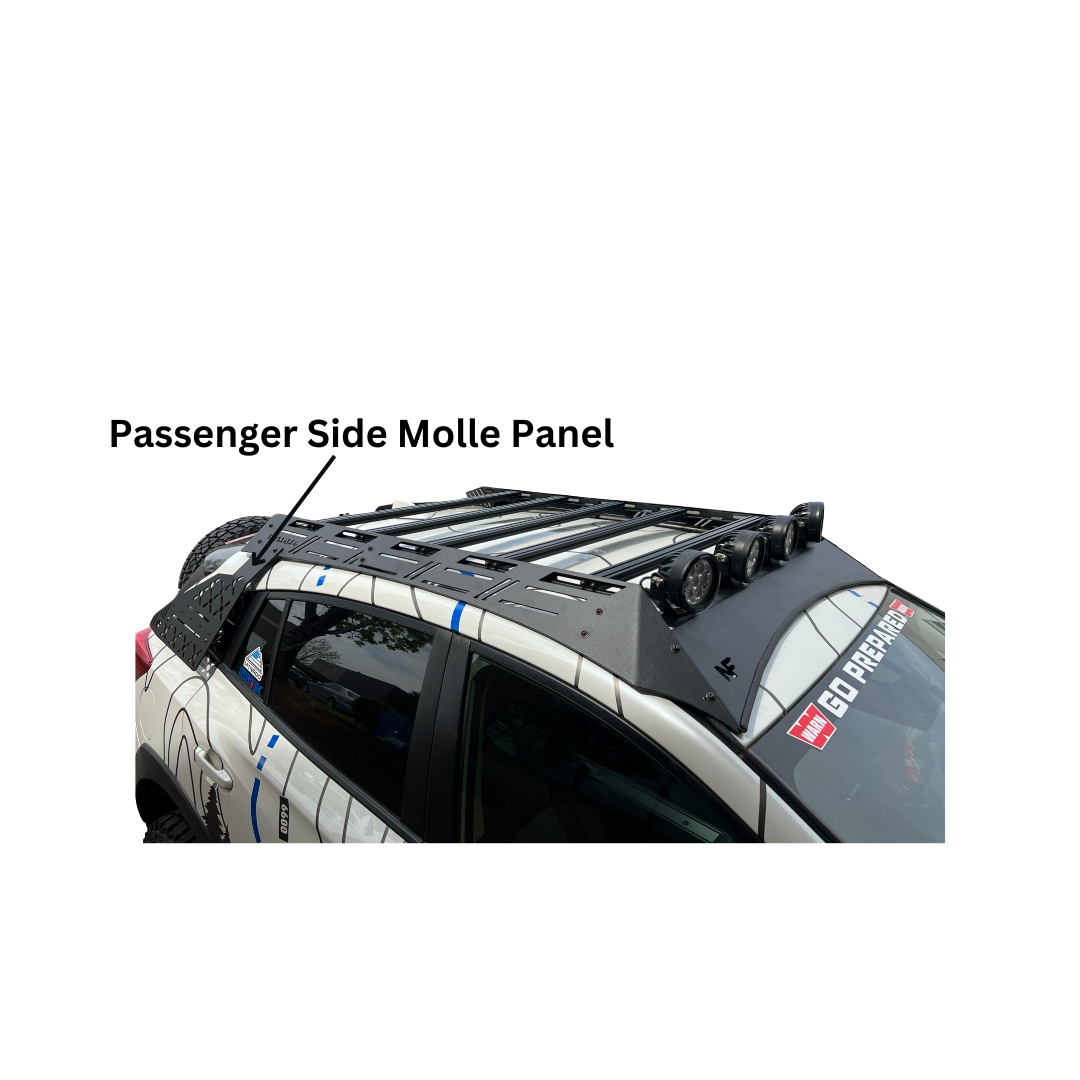

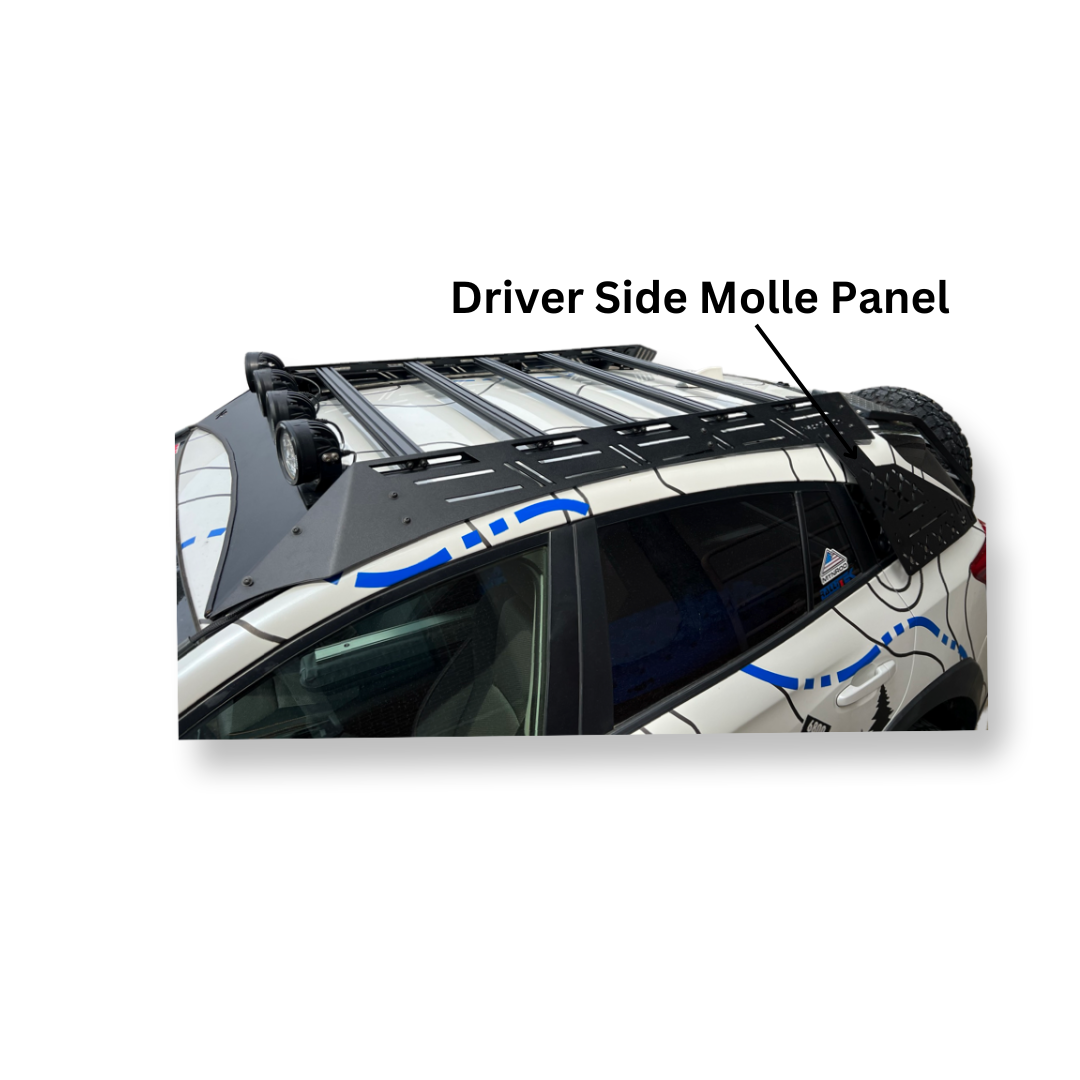

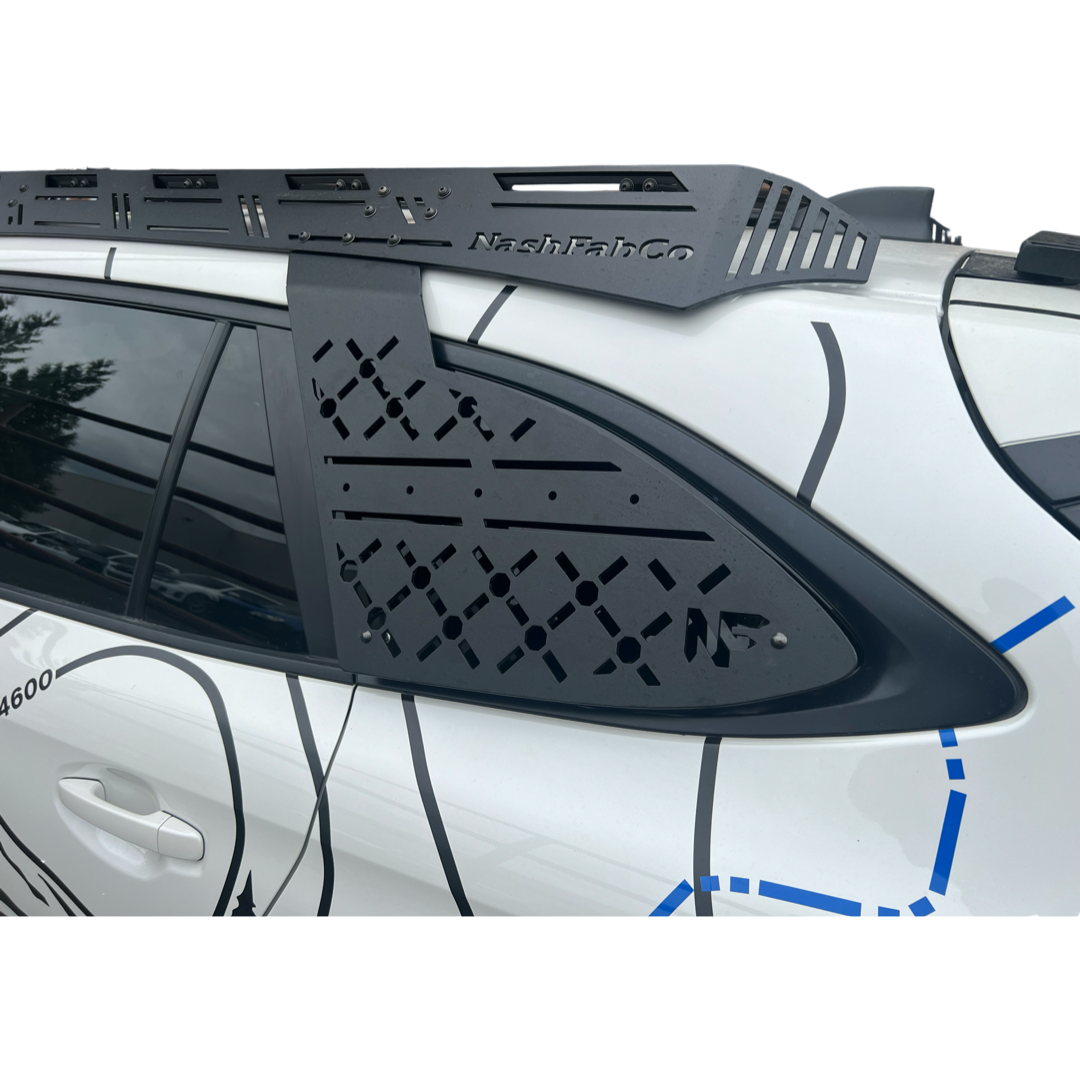

Add Exterior Molle Panels
Add Grab Handles

If you like to stand out, NashFab roof racks have a look like no other! The side rails are mounted at a 45-degree angle creating a very distinct and sleek design that flows with the body of the vehicle! The roof racks are one of the lowest profile racks on the market!

FEATURES:

- All constructed from Aluminum

- Sits 1.5" high, 40" wide on top, and 6ft long

- No Drilling Required

- Easy bolt-together construction (Installation Instructions Provided)

- All Stainless Steel hardware coated black (Included)

- CNC cut side rails from 3/16" Aluminum

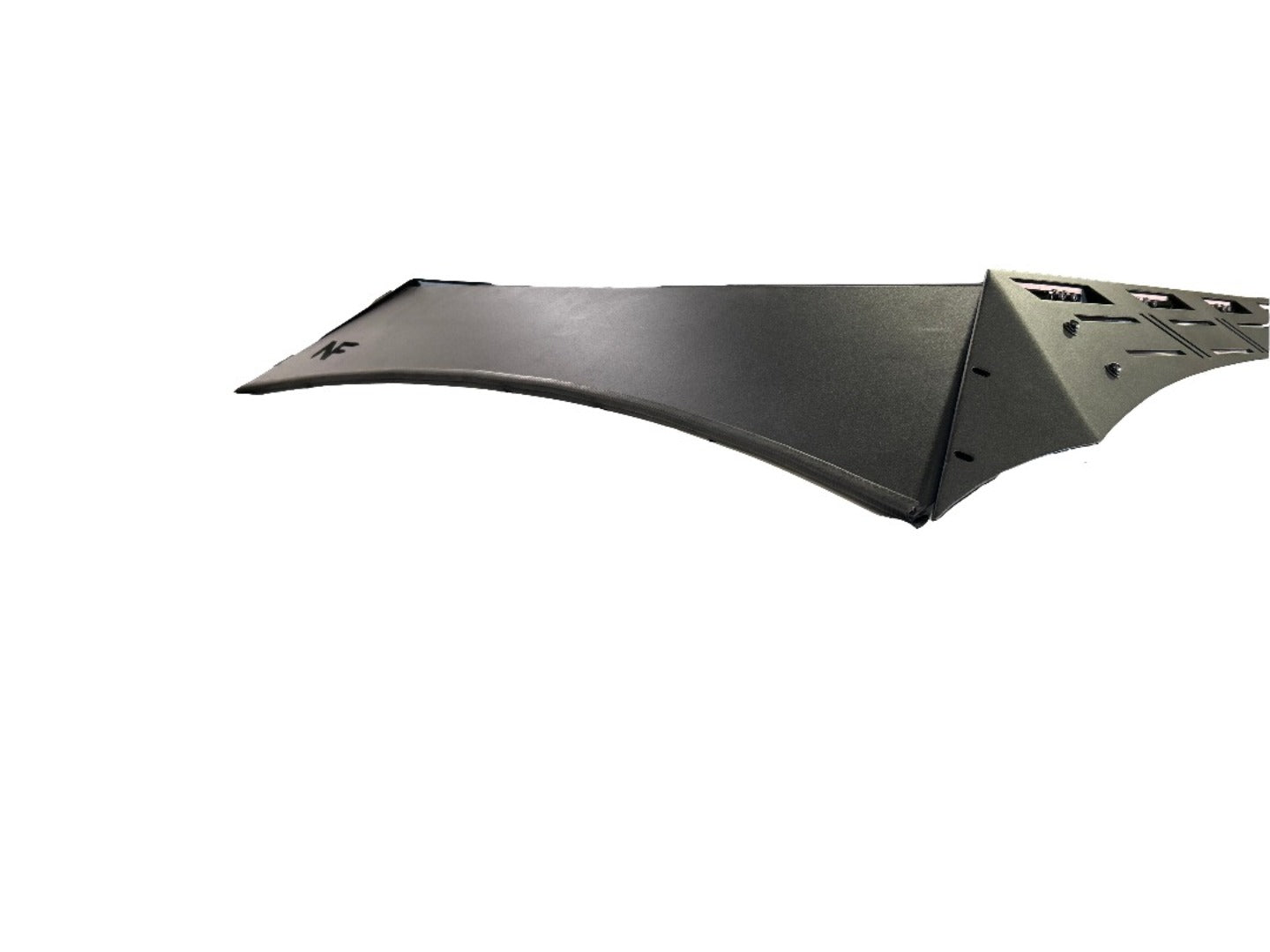

- CNC cut wind deflector from 1/8" aluminum (edge protected with rubber trim)

- Roof brackets are made of 1/8" steel for strength

- (6) extruded aluminum 1"x 2" T-slot cross bars

- Side rails have zero flex making it a solid design

- Tested up to 1000 lbs of carry weight.

- Light Weight of 40lbs

- Powder coated with a zinc primer and a flat textured black for a durable finish

- Wind deflector with optional light bar cut-out

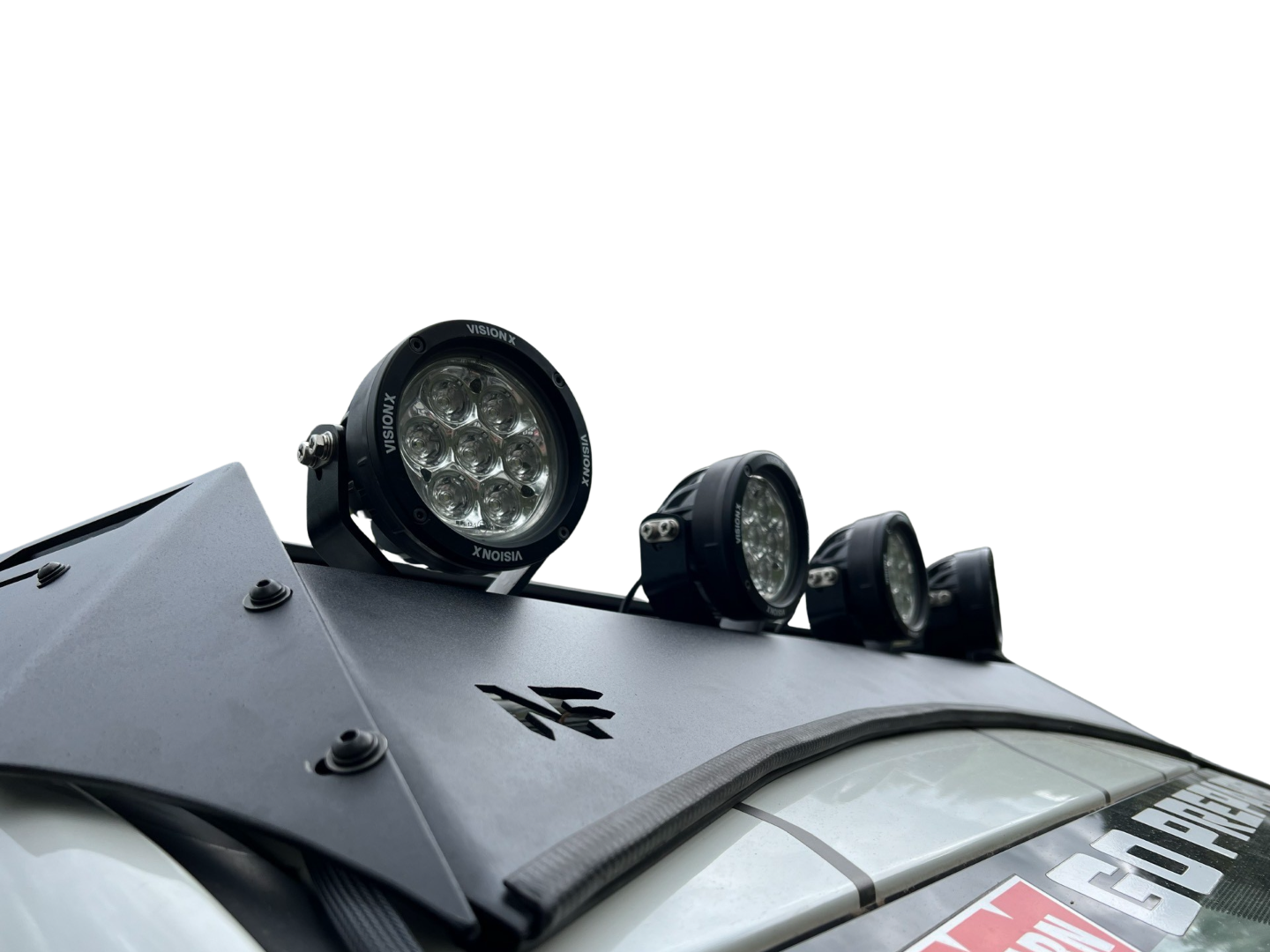

- Light bar cut out for one 38" single or double row light bar (fully adjustable)

- Comes with light bar mounting brackets!

- This rack has been tested with little to zero noise!

Unlike other roof racks on the market, NashFab roof racks were designed for an easy one-man install! Our racks do not require complete assembly prior to installation and no additional help is needed to install on your vehicle! Side rails easily slide on and mount to roof brackets. Crossbars are then dropped in and can slide forward or backward to your desired mounting location.

Local Installation Is Available ( The interior Headliner does need to be dropped to access the OEM roof rack hardware for removal and to Install The NashFab Roof Rack! There are several online videos showing how to do this.

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
j
j a.
Nashfab roof rack

Really like the look, install took waaaay too long. Had to disassemble the headliner, all the pillars and airbags, all understandable and i had planned for it, however there were 8 holes left in The roof that had no plugs or provisions for. And all those holes are in the now exposed gutter, i plugged them with automotive seam filler that luckily i had. This is definitely an intermediate level installation. I also added roof lighting and am super happy with the final look. So, good product, but a more complete install kit wiuld of been preferable

Thank you for your review of the NashFab Roof Rack. We apologize for any inconvenience with the installation process and appreciate your feedback. We will definitely take your suggestions into consideration and let them know for future updates to their product. We are glad to hear that you are happy with the final look and hope you enjoy the added roof lighting. If you have any further questions or concerns, please do not hesitate to reach out to our customer service team.

J
Jay R.
Amazing Best Rack on the Market

I absolutely love this rack strong and super tight fit aero and sleek. I have a roof top tent and it olds all the weight, No problem. I purchased it with the Molle Racks on both sides and they function very well to add rotopax gas and water for the long trips. + They just look cool, let's be honest. A must for me and my overland trip game changer! Only negative a bit difficult to install but well worth it.

View full details

Collapsible content

What's in the Box

x1 Driver Side Rail
x1 Passenger Side Rail
x5 Crossbars
x1 Wind Deflector
x1 Hardware Kit
x6 Brackets

Warranty Information

RalliTEK BRANDED PRODUCTS LIFETIME WARRANTY

RalliTEK branded products are warranted to the original owner against manufacturing defects in materials and workmanship for the lifetime of the product.

If a RalliTEK branded product covered by this warranty fails due to a manufacturing defect we will repair the product, without charge, or replace it at our discretion. This policy covers only original, unaltered, and unmodified materials and workmanship. This warranty does not cover damage caused by incorrect installation, accident, improper care, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use. Damage not covered under warranty may be repaired for a reasonable rate and a fee will be charged for return shipping.

No payment or reimbursement shall be made for installation, removal, transportation, or other charges. The remedies outlined in this instrument are exclusive and the liability of RalliTEK with respect to any sale shall not exceed the price of the product on which the liability is based.

For warranty evaluation, please contact RalliTEK Customer Service at (503) 619.0055 or info@rallitek.com to obtain a return authorization. Once this step has been completed, your product must be returned directly to the RalliTEK Warranty Department, 13339 NE Airport Way, Suite 500, Portland, OR 97230. All shipping to the Warranty Department must be pre-paid and insured. RalliTEK will not be liable for damaged or lost inbound packages.

      NOTE: This warranty is only available within the United States or Canada

  • This warranty gives you specific legal rights; you may have other rights, which vary from state to state.
  • This warranty does not cover products sold by RalliTEK that are not RalliTEK branded products.

The RalliTEK website sells discontinued, special markup, and slightly blemished products at significant discounts as 'factory seconds' products. This warranty does not automatically cover products purchased as factory seconds. RalliTEK reserves the right to determine if any warranty applies on a case-by-case basis for factory second parts. If approved, the RalliTEK Warranty Department may repair factory second products for a reasonable charge and applicable shipping charges.

MANUFACTURER WARRANTIES (FOR NON-RALLITEK BRANDED PRODUCTS)

Non-RalliTEK branded products do not have any written or implied warranties. Products on RalliTEK.com are sold with the warranty applied directly from the manufacturer. The customer must contact the product brand manufacturer for any warranty details. All products sold by RalliTEK are intended for off-road and/or race use only, as suggested by the manufacturer, and should be installed and set up by professional service centers only. RalliTEK is not responsible for any product failure or failure due to installation. Should a warranty claim arise, the customer and the manufacturer will handle all warranty issues directly.

There is no warranty on high-performance or race-related parts due to the nature of usage.

No payment or reimbursement shall be made for installation, removal, transportation, or other charges. The remedies outlined in this instrument are exclusive and the liability of RalliTEK with respect to any sale shall not exceed the price of the product on which the liability is based.

EXCEPT AS STATED OTHERWISE IN THIS WARRANTY, RalliTEK MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. RalliTEK shall not, in any case, be liable for special, incidental, consequential, indirect, or other similar damages arising from any breach of these warranties even if RalliTEK or its agent has been advised of the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you. This warranty is governed by the laws of the State of Oregon.

Installation Instructions

Applications

Compatible with:
2020 Subaru Outback
2021 Subaru Outback
2022 Subaru Outback
2023 Subaru Outback
2024 Subaru Outback
2022 Subaru Outback Wilderness
2023 Subaru Outback Wilderness
2024 Subaru Outback Wilderness
